Ford Pigtails Part 4

PART# 35-418
REAR LAMP ASSEMBLY PIGTAIL
FORD TRUCKS F-250/F-750 W/O PICK UP BOX 1999/
LAMP ASSEMBLY: F81Z-13404-AA, F81Z-13405-AA

A white plastic tube with a red cap.

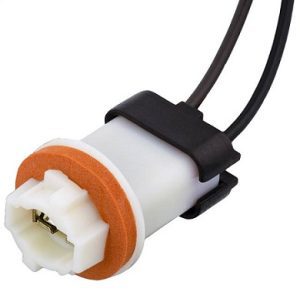

PART# 35-417
LICENSE PLATE & SIDE MARKER LIGHT PIGTAIL
FORD CARS, TRUCKS 1998/
BULB: 194

Vehicle fuel injector with electrical connector.

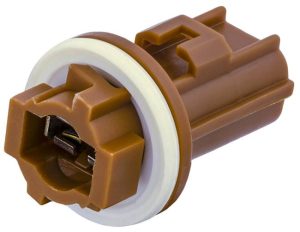

PART# 35-415
SOCKET RUNNING BOARD LIGHTS
USED W/35-416
FORD LIGHT DUTY TRUCKS 1997/
REPLACES:F85Z-13411-AA

Plastic electrical connector with a rubber seal.

PART# 35-416
RUNNING BOARD LIGHTS,
EVAPORATOR SOLENOIDS PIGTAIL
LIGHT SOCKET# F85Z-13411-AA
SOLENOID# F75Z-9F945-BA, F75Z-9F945-CA
F7DZ-9F945-AA

A gray connector with wires attached to it.

PART# 35-414
FUEL INJECTORS PIGTAIL
WITH OVAL INJECTOR CONNECTIONS
FORD CARS, TRUCKS 4, 6, 8, 10 CYLINDER 1999/

A close up of the connector on a car

PART# 35-421
IGNITION COIL PIGTAIL
FORD CARS, LT. DUTY TRUCKS 1999/
COIL# F7TZ-12029-CC, 1L2Z-12029-AA

A black and white picture of an electrical connector.

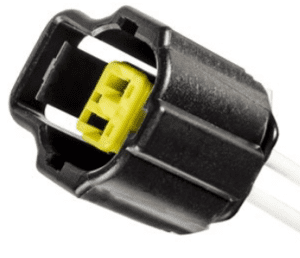

PART# 35-422
WINDSHIELD WASHER PUMP, IAC VALVES PIGTAIL
FORD CARS, TRUCKS 1997/
PUMP# F6SZ-17664-BA, F6SU-17664-DA, WG300
IAC VALVE# F65Z-9F715-EB, F75Z-9F715-AB
REPLACES: 3U2Z-14S411-HVA, WPT-657

A close up of the connector on a car.

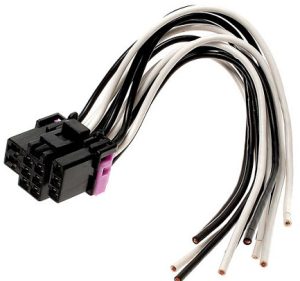

PART# 35-424
HEAD LAMP SWITCH PIGTAIL
FORD EXPLORER, MOUNTAINEER, RANGER 1995/
SWITCH# F57Z-11654-A, F87Z-11654-AA, F87Z-11654-BA,
2L5Z-11564-AA, SW5055, SW5847, SW6123

Atx power supply 24-pin to 14-pin adapter cable.

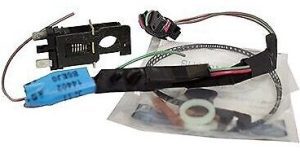

PART# 35-425
BRAKE LAMP SWITCH PIGTAIL
FORD TAURUS, SABLE STATION WAGONS 2000/
SWITCH# YF1Z-13480-BA
REPLACES: 1F1Z-14A411-BA

A black and red connector is connected to wires.

PART# 35-426
DAYTIME RUNNING LAMP CONTROL MODULE
NEUTRAL SAFETY/BACK-UP/LEVER POSITION SWITCH/MLP TRANSMISSION SENSOR
FORD CARS, LT. DUTY TRUCKS 1990/
MODULE BASE# 5A272A, SWITCH# E9TZ7A247A
REPLACES: F2PZ-14A464-C, 3U2Z-14S411-BBA, WPT-298

A black wire with red and white wires attached to it.

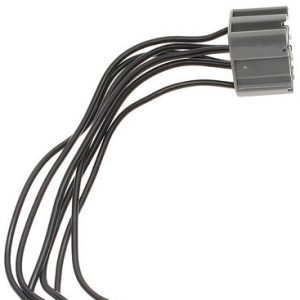

PART# 35-428
IGNITION SWITCH PIGTAIL
FORD CARS, TRUCKS 1970 – 1977
SWITCH# D7AZ-11572-A SW-1379
REPLACES: F6HZ-14A464-FUA

A bunch of wires that are connected to each other.

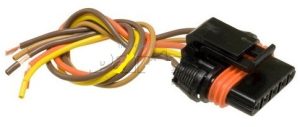

PART# 35-430
INJECTOR/ GLOW PLUG PASS
THROUGH AT VALVE COVER GASKET
FORD E & F SUPER DUTY, EXCURSION TRUCKS
7.3LT DIESEL 1995 – 1997
(2 HEAD) VALVE COVER GASKET# F4TZ-6584-A
REPLACES: PT2484

Electrical wire harness with a multi-pin connector.

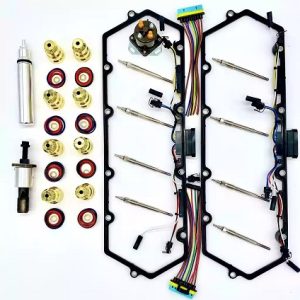

PART# 35-431
INJECTOR/ GLOW PLUG PASS
THROUGH AT VALVE COVER GASKET
FORD E & F SUPER DUTY, EXCURSION TRUCKS
7.3LT DIESEL 1998/ & EXCURSION 2000/
(1 HEAD) VALVE COVER GASKET# F81Z-6584-AA
REPLACES: 7U2Z-14S411-AA, WPT-886

A close up of the wires on a car

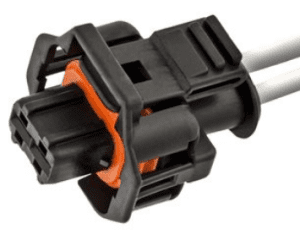

PART# 35-432
FORD FUEL- INJECTOR, KNOCK, CAM, CRANK,
COOLANT TEMP SENSORS
FORD 2010- 2016
REPLACES: 88988963, PT-2183, CU2Z-14S411-ARA
WPT-1302

A close up of the connector on a car

PART# 36-60
DOUBLE CONTACT PIGTAIL
PARK/TURN LAMPS 1980 – 1974
REPLACES: D4OZ-13234-A
BULB: 1157

Automotive ignition switch with key and wiring harness.

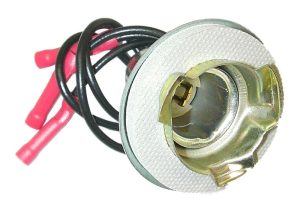

PART# 36-61
DOUBLE CONTACT PIGTAIL
PARK/ TURN LAMPS 1978 – 1973
REPLACES: D3MY-13410-A
BULB: 1157

Ignition switch with wiring harness.

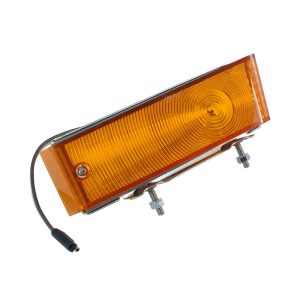

PART# 36-62
PARK/TURN LAMPS
FORD PRODUCTS 1974/
BULB:1157









PART# 36-67
PARK/TURN LAMPS
FORD PRODUCTS 1971/
REPLACES: D1FZ-13234-A
BULB:1157

A white light bulb with wires attached to it.
A white light with wires on top of it.

PART# 36-63
SINGLE CONTACT PIGTAIL
BACK-UP/CORNERING 1980 – 1973
REPLACES: D3AZ-13410-E
BULB:1156

Plastic float switch with electrical leads.

PART# 36-74
REGULATORS & COOLANT LEVEL SENSOR PIGTAIL
FORD TOPAZ, TEMPO, SABLE, TAURUS, T-BIRD,
COUGAR, MUSTANG 1990/  & ESCORT 1986/
SENSOR BASE# 10D968
REPLACES: 1U2Z-14S411-UA, WPT-119

A gray connector with wires attached to it.

PART# 36-68
DOUBLE CONTACT PIGTAIL
STOP/TAIL/TURN LAMPS 1993 – 1977
REPLACES: D7OZ-13410-A
BULB: 1157

A light bulb with wires attached to it.

PART# 36-66
SINGLE CONTACT PIGTAIL
PARK/TURN LAMPS 1978 – 1975
REPLACES: D5AZ-13234-A
BULB: 1141

Automotive electrical socket with attached wires and connectors.

PART# 36-65
DOUBLE CONTACT PIGTAIL
STOP/TAIL/TURN LAMPS 1979 – 1973
REPLACES: D4LY-13410-A
BULB: 1157

Electrical twist-on wire connector with wires and additional red caps.

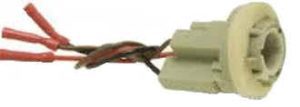

PART# 36-64
DOUBLE CONTACT PIGTAIL
STOP/TAIL/TURN LAMPS 1980 – 1973
REPLACES: D3AZ-13410-G
BULB:1157

Electrical connector with exposed and twisted red wires.
