Ford Pigtails Part 2

REPAIR HARNESS & PIGTAILS

PART# 35-210
EEC IV TEST PLUG
FORD PRODUCTS 1983/

A multi-wire electrical connector with color-coded wires.

PART# 35-206
STOP LIGHT SWITCH
FORD 1965/
SWITCH# F0AZ-13480-A
REPLACES: 3U2Z-14S411-XA, WPT-197

A black connector with two wires attached to it.

PART# 35-203
ALTERNATOR REGULATOR A/C
CLUTCH FIELD PIGTAIL
FORD VARIOUS MODELS 1994/

Close-up of a gray plastic electrical connector with a single attached wire.

PART# 35-201

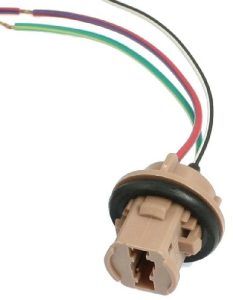

SOCKET ASSEMBLY PIGTAIL
STOP/TAIL LAMP W/WEDGE TYPE BULB
BULB: 3157, 3057, 2458

A close up of the inside of an electrical plug

PART# 35-187
DOOR JAM SWITCH/ MASTER CYLINDER
POWER MIRROR PIGTAIL
FORD 1987/ Â MASTER CYLINDER
1992/ Â DOOR JAM SWITCH

4-pin peripheral power connector (molex).

PART# 35-184

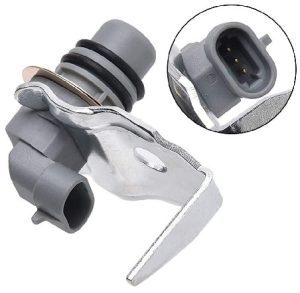

CAM SHAFT SENSOR PIGTAIL
FORD F-250 – 550 7.3LT 1997/
FORD SENDOR# F7TZ-12K073-A

PART# 35-173
EGR SENSOR PIGTAIL
(E6AZ-9J460-A)
FORD TAURUS, SABLE, ESCORT,
LYNX, SCORPIO 1988/
PRESSURE FEEDBACK SENCER#
F0DZ9J460-A

A gray connector with wires attached to it.

PART# 35-172
IGNITION COIL PIGTAIL
FORD VARIOUS MODELS 1983 – 1996
FITS COIL: E73Z-12029A

Four-pin electrical connector with color-coded wires.

PART# 35-171
FUEL PUMP RELAY PIGTAIL
FORD PRODUCTS 1982/
FOR 5 LEADS ASS 35-431(12 GA.)
OR 35-432 (16 GA.) AS NEEDED

Electrical connector with color-coded wires isolated on a white background.

PART# 35-170
ENGINE FAN SWITCH PIGTAIL
FORD PRODUCTS 1984/
FITS SWITCH# E43Z8B607-A,
F13Z-8B607-A
REPLACES: 1U2Z-14S411-BAA, WPT-146

A gray and orange connector is connected to an electrical wire.

PART# 35-169
ENGINE FAN SWITCH PIGTAIL
FORD PRODUCTS 1984/
FITS SWITCH#E5SZ-8B607-A,
E4FZ-8B607-A, E5FZ-8B607-A
FUEL VAPOR PURGE VALVE#
E6ZZ-9C915-A

PART# 35-165
ELECTRONIC IGNITION MODULE PIGTAIL
FORD PRODUCTS 1975/
MODULE # F2PZ-12A199-AA
DY683 (MAIN WIRING HARNESS)

Black plastic electrical connector with multiple wires.

XL5Z-BAA/ XR9Z-AB/ XW3Z-AB
XW3Z-BB/ Y85Z-CA/ YC2Z-BA
YF5Z-BAA, SW-5554/ YL1Z-AAA,
SW-5548/ YL1Z-BA/ YW3Z-AB
YL5Z-AAA, SW-5577/ YW1Z-AA

Electrical connector with multiple wires.

A picture of the 3 5-1 6 2 connector with three wires.

E8DZ-B, SW-2441/ EBZZ-B, SW-2443
E9DZ-C, SW-2444/ E9OY-D, SW-2446
E9SZ-D, SW-2447/ E9SZ-E, SW-2448
F4SZ-AB/ F88Z-AB/ F89Z-AA, SW-5454
F8TZ-AB, SW-5466/ XF3Z-BA, SW-5456

A picture of the front end of an electrical connector.

A picture of the wire for the 3 5-1 6 0 connector.

PART# 35-211
SOCKET & WIRE ASSEMBLY
PARKING LAMP & REAR LAMP
FORD, LTD, T-BIRD, MERCURY,
MARQUIS, COUGAR 1983/
ESCORT, LYNX 1981/
FAIRMONT, ZEPHYR 1981/ , Â 1983/
REPLACES: E2SZ-13410-A
BULB: 1157

White plastic electrical connector with attached wires and protective caps on the wire ends.

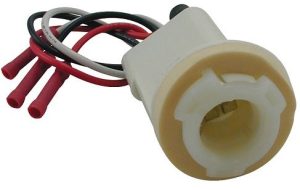

PART# 35-213
SOCKET & WIRE PIGTAIL
PARKING LAMP FORD MUSTANG 1980/
GRANADA 1980 – 1982, LTD 1983
PINTO 1978, FAIRMONT 1979 – 1983
T-BIRD & ESCORT 1981
REPLACES: W1FZ-13234-A
BULB: 1157

An off-white electrical socket with attached colored wires isolated on a white background.

PART# 35-223
EXHAUST OXYGEN SENSOR PIGTAIL
FORD 1989/
SENSOR# F0TZ-9F472-A & C,
F09Z-A & C, F1UZ-C, F9UZ-B
REPLACES: 1U2Z-14S411-KA, WPT-111

PART# 35-224
EXHAUST OXYGEN SENSOR PIGTAIL
FORD 1989/
FOG LAMPS FORD EXPLORER 1999/
SENSOR# F0TZ-9F472-B, F02Z-C,
F03Z-A, F0SZ-A & B, F0TZ-E
REPLACES: 1U2Z-14S411-LA, WPT-112

Electrical connector with a red retainer and attached multicolored wires.

A black wire with red and yellow wires attached to it.

PART# 35-237
FORD A/C COMPRESSOR
CLUTCH COIL PIGTAIL

Single-pin electrical connector with attached wire.

PART# 35-245
FORD ACCUMULATOR PRESSURE
CYCLING SWITCH PIGTAIL

Two-prong electrical plug with a black casing and wires.

PART# 35-252
REPAIR HARNESS PIGTAIL MALE BULLET FOR ALL
A/C UNITS

A black cord with a white tip and a black plug.

PART# 35-301
THROTTLE POSITION SENSOR PIGTAIL
FORD TAURUS,SABLE 1990/
RANGER,EXPLORER,ESCORT 1991/
CROWN VICTORIA,MARQUIS 1992/
SENSOR BASE# 9B989

A black plastic electrical connector with red terminals and attached wires.

PART# 35-302
SIDE MARKER LIGHT RIGHT ANGLE
FORD PRODUCTS 1980/
REPLACES: 12001470, LS5
BULB: 194

A light bulb with two wires attached to it.

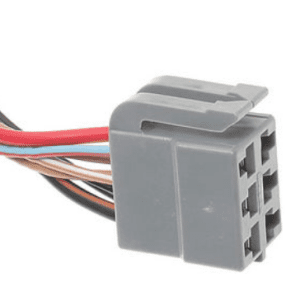

PART# 35-303

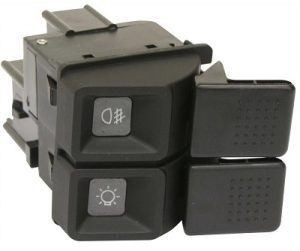

HEAD LAMP SWITCH PIGTAIL
FORD MUSTANG 1987 – 1993
SWITCH#E7ZZ-11654-A

PART# 35-157
HEAD LAMP SWITCH PIGTAIL
W/FOG LAMPS MUSTANG 1988 – 1993
SWITCH# E7ZZ-11654-B (SW2106)

A picture of the end of an extension cord.

PART# 35-304

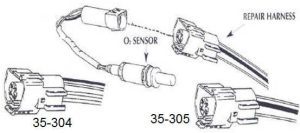

EXHAUST OXYGEN SENSOR PIGTAIL 4 LEADS
FORD VEHICLES 1990/
O2 SENSOR BASE# 9F472 4 LEADS

PART# 35-305
EXHAUST OXYGEN SENSOR PIGTAIL 3 LEADS
FORD VEHICLES 1986/
O2 SENSOR BASE#9F472
REPLACES: 3U2Z-14S411-DRA, WPT-386

A black and red connector is connected to wires.

A picture of an electrical connector with wires.

PART# 35-306

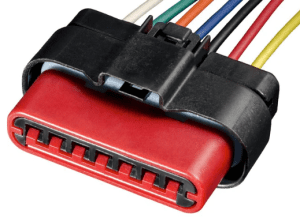

WIPER MOTOR PIGTAIL
FORD VEHICLES 1987/
REPLACES: F4ZZ-14A411-B,
1U2Z-14S411-ALA, WPT-175

A red and black connector with wires attached to it.

PART# 35-307
WIPER MOTOR PIGTAIL
FORD VEHICLES 1987/
REPLACES: F4PZ-14A411-C

PART# 35-309
90Â° LAMP SOCKET BASE PIGTAIL
GREY HARD SHELL
FORD RANGER, EXPLORER
ECONOLINE 1991/
REPLACES: 1U2Z-14S411-DA, WPT-105
WEDGE BULB
PART# 35-308
90Â° LAMP SOCKET BASE PIGTAIL
BLACK HARD SHELL W/TAB GUIDE
FORD RANGER, EXPLORER
ECONOLINE 1991/
WEDGE BULB
PART# 35-341
STRAIGHT LAMP SOCKET BASE PIGTAIL
GREEN HARD SHELL
FORD WINDSTAR 1995/
REPLACES: 1U2Z-14S411-EA, WPT-106
WEDGE BULB
PART# 35-340
STRAIGHT LAMP SOCKET BASE PIGTAIL
BROWN HARD SHELL
FORD WINDSTAR 1995/
WEDGE BULB
