Misc. Pigtails Part 3

PART# 35-84
FLOOR MOUNT DIMMER SWITCH PIGTAIL
GM 1990 – 1976, JEEP 1983 – 1963, FORD 1979 – 1061
FITS DELCO D808
REPLACES: FORD C2VY-13A024-A, C5MY-A

A black wire with two wires attached to it.

PART# 35-91
MULTI-USE CONNECTOR PIGTAIL
FOR ELECTRICAL SENSORS, BRAKE SENSOR,
DESIGNED FOR OIL PRESSURE SWITCHES,
TEMP. SENDING UNITS, THERMOSTAT SENSOR, ETC
ACCEPTS .157” BULLET OR STUD

A black cord with an end that is bent to the side.

PART# 35-99
DOUBLE CONTACT PIGTAIL
BACK-UP/STOP/TAIL/TURN LAMPS
REPLACES: AMC 8218931, DELCO LS-7, GM 12003759
BULB: 1034, 1154, 1157

A light bulb that is on top of wires.

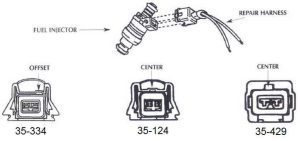

PART# 35-124
FUEL INJECTOR PIGTAIL
CENTER SET INDEX
LUCAS, BOSCH, DOMESTIC, IMPORT
PART# 35-334
FUEL INJECTOR PIGTAIL OFFSET
W/EXTERNAL SPRING CLIP RETAINER
LUCAS, BOSCH, DOMESTIC, IMPORT
PART# 35-429
FUEL INJECTOR PIGTAIL CENTER
W/EXTERNAL SPRING CLIP RETAINER
LUCAS, BOSCH, DOMESTIC, IMPORT

A picture of the center part of an engine.

PART# 35-125
FUEL INJECTOR SOLENOID PIGTAIL
FITS MULTI-PORTS INJECTORS
GM 1711799, 1993 – 1986
FITS BOSCH, LUCAS INJECTORS ON CHRYSLER
FORD, AMC/JEEP, DOTSON/NISSAN
PORSCHE, TOYOTA, VW, VOLVO
REPLACES: GM 12085491

A black connector with a white wire.

PART# 35-148
INSTRUMENT PANEL SOCKET
GM, CHRYSLER, AMC 1975/
GENERAL PURPOSE 3/8” OPENING

A black and gold piece of electrical equipment.

PART# 35-204
ALTERNATOR PIGTAIL

A white wire with three wires attached to it.

PART# 35-233
ALTERNATOR, STARTER 2-WAY
MALE REPAIR PIGTAIL W/LOCK
HITACHI A/C COMPRESSOR

A picture of the wire for the antenna.

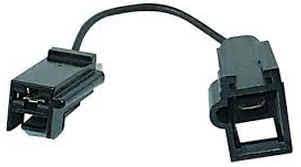

PART# 35-234
A/C COMPRESSOR COIL ADAPTOR PIGTAIL
NIPPONDENSO STYLE PIGTAIL CONNECTOR
CHRYSLER C171

A picture of the power cord for the car.

PART# 35-237
A/C COMPRESSOR CLUTCH COIL PIGTAIL
FORD, SANDEN, NIPPONDENSO

A picture of an electrical wire with a white connector.

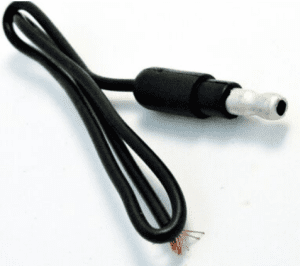

PART# 35-252
REPAIR HARNESS PIGTAIL MALE BULLET FOR ALL
A/C UNITS

A black cord with a white tip and a black plug.

PART# 35-259
DIESEL KIKI A/C COMPRESSOR
CLUTCH COIL PIGTAIL
GM HEAVY DUTY TRUCKS

A green light is on the side of a wire.

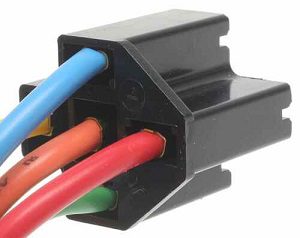

PART# 35-260
UNIVERSAL 4 OR 5 TERMINAL RELAY PIGTAIL
BLOWER A/C CUT OUT, ANTI-DIESELING

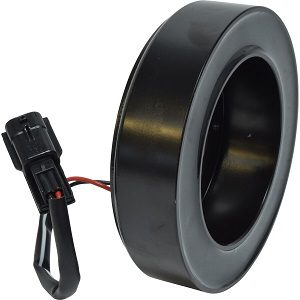

PART# 35-263
HITACHI MJS170/ NIHON NVR140S/ DKV14C/
CALSONIC A/C COMPRESSOR CLUTCH COIL PIGTAIL

A white cable with an antenna on it.

PART# 35-264
A/C COMPRESSOR CLUTCH PIGTAIL
NIPPONDENSO 10P17C (ACURA)

A yellow plastic connector is shown.

PART# 35-377
ALTERNATOR, STARTER MALE SL REPAIR PIGTAIL

A black wire with yellow and blue wires

PART# 35-378
ALTERNATOR, STARTER PIGTAIL
LATE MODEL BOSCH IF

A black and white picture of an electrical outlet.

PART# 35-407
PLUG FITS INTO POWER SOCKET OR
CIGARETTE LIGHTER PROVIDES 12VPOWER
20 GA, 8 AMPS

A black and white photo of an electrical device.

PART# 35-433
12V POWER SOCKET
PRE-WIRED WITH FUSE HOLDER
(FUSE NOT INCLUDED)
USE WITH ANY 12VPOWER PLUG

A black and white picture of an electric cord.

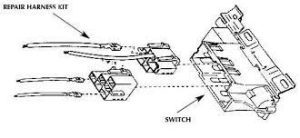

PART# 36-06
IGNITION SWITCH PIGTAIL
AMC/JEEP 1978 – 1988
SWITCH# 3250575, 3250576, 8128889, 8128890

A drawing of the electrical system for a house.

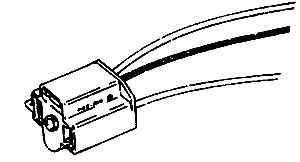

PART# 36-08
SEALED BEAM HEADLAMP WITH FIBER OPTICS FOR 3 TERMINAL
REPLACES: 88860446, 12117333, LS144, PT-466
GM PRODUCTS

A gray connector with two wires attached to it.

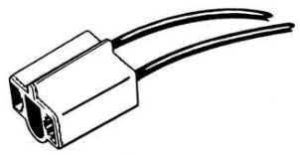

PART# 36-09 2-Wire Connector with Fiber Optic cavity for two-terminal sealed beam headlamps and flashers REPLACES: 88860447, 12101879, LS145, PT27BULB: 4000, 4651

A white electrical outlet with two wires attached to it.

PART# 36-46
HALOGEN HEAD LAMP PIGTAIL
GM, FORD, CHRYSLER
GREY
2-18GA. LEADS
BULB: H9

A gray and blue connector is connected to the wires.

PART# 36-47
HALOGEN HEAD LAMP PIGTAIL
IMPORT CAR
2-14GA. LEADS
BULB: H7

A close up of the wires on a light switch

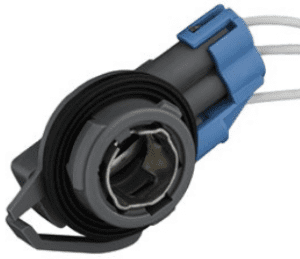

PART# 36-49
BACK-UP, PARKING, TURN, SIGNAL, STOP, TAIL
GM: 1993 – 2005
REPLACES: 12141493, LS49
3 – 18 GA. TXL 8″ LEAD
BULB: 1157, 2057

A blue and black connector is connected to wires.

PART# 36-50
HEAD LAMP SEAL BEAM PIGTAIL
REPLACES: 3U2Z-14S411-BHA, WPT-301
BULB: 6006, 6014, 6054, 4000, 4001,
4652, 4651, 9003, H4, H7

A black wire with two wires attached to it.

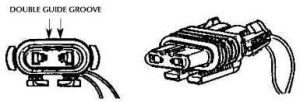

PART# 36-51
HEAD LAMP PIGTAIL
GM 1986/FORD/CHRYSLER
FOG LAMPS FORD EXPEDITION, LINCOLN LS1999/
REPLACES: 12101898,PT-168,1U2Z-14S411-FA,WPT-107
BULB: 9005, 9145,H10, H4352

A picture of two different types of wires.

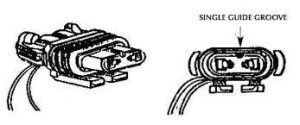

PART# 36-52
HEAD LAMP PIGTAIL
GM 1986/ , FORD, CHRYSLER
REPLACES: 12101897, PT-167
BULB: 9006, H4351

A picture of two different types of wires.

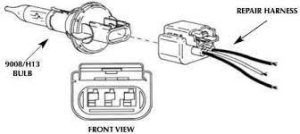

PART# 36-53
HEAD LAMP PIGTAIL
FORD 2004/ ,GM 2006/ ,CHRYSLER 2005/ ,NISSAN
BULB: FORD:3F2Z-13N021-AA, GM:15203303,
CHRYSLER:L0000H13
FOR H13 (9008) HALOGEN BULB

A picture of the front view and back view of an electrical connector.

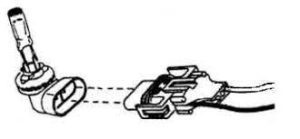

PART# 36-54
HALOGEN BULB SOCKET ASSEMBLY PIGTAIL
2 – 7″ LEADS 18GA.
GM 1983/ , FORD 2005/
BULB: 862, 881, 886, 889, 894, 896, 898, H8, H11
REPLACES: 12043215, 88862217, PT2298,
3U2Z-14S411-VZA, 3U2Z-14S411-VZB, WPT-781, WPT-952

A drawing of a person holding onto something

PART# 36-56
DOUBLE CONTACT PIGTAIL
DOME/MAP/UNIVERSAL
BULB: 64, 68, 90, 94, 210, 1004, 1076
1130, 1142, 1158, 1176, 1177, 1178

A close up of the end of an electrical connector

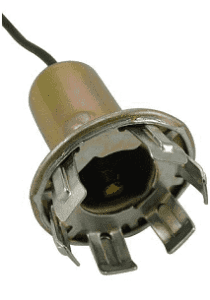

PART# 36-57
SINGLE CONTACT PIGTAIL
BACK-UP/UNIVERSAL
AMC 1976-1965, CHRYSLER 1993-1971
FORD 1977-1970
REPLACES: AMC 4489412, 29783202,
CHRYSLER 3513162, 3780745, 8903205
BULB: 63, 67, 81, 87, 89, 93, 209, 1003

A picture of an object that is very old.

PART# 36-58
HEAD LAMP PIGTAIL
GM, FORD, CHRYSLER
REPLACES: 12117260, PT-433, 1U2Z-14S411-JA,
3F5Z-14S411-AA, WPT-101, WPT-110
BULB: 9004, 9007 HALOGEN

A blue plastic plug with wires attached to it.
