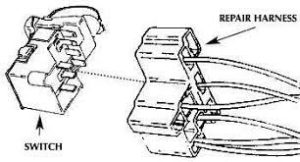

PART# 35-147
GM HEADLAMP SWITCH PIGTAIL
GM 1968/
FITS SWITCH# 6-7109202
GM Pigtails Part 2
![A drawing of the bottom section of an assembly.](https://delmarwire.com/wp-content/uploads/2023/01/gm-pigtails-p2-35-147-300x162.jpg)

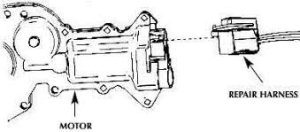

PART# 35-149
GM WINDOW LIFT MOTOR PIGTAIL
GM VEHICLES 1979/
REPLACES: 12101914, PT-186
![A drawing of an engine compartment with the brake light on.](https://delmarwire.com/wp-content/uploads/2023/01/gm-pigtails-p2-35-149-300x132.jpg)

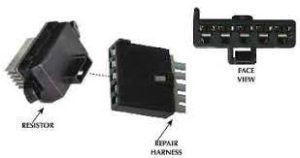

PART# 35-151
BLOWER RESISTOR, WINDOW SWITCH,
STEERING COLUMN SWITCH
GM CARS & LT. DUTY TRUCKS 1993-2012
REPLACES: 12167129, PT-795
RESISTOR# 22752970, 23454134
![A picture of the inside of an electrical device.](https://delmarwire.com/wp-content/uploads/2023/01/gm-pigtails-p2-35-151-300x158.jpg)

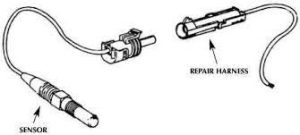

PART# 35-153
GM COOLANT TEMP SENSOR PIGTAIL
GM 1987/
SENSOR#25037203, 10232601
![A picture of some parts that are in the same drawing.](https://delmarwire.com/wp-content/uploads/2023/01/gm-pigtails-p2-35-153-1-300x135.jpg)
PART# 35-163 (TOP OF PIC)
IGNITION COIL PIGTAIL
GM 1985/
FITS COIL#1115315, 1115317
REPLACES: 12101896, PT-166
PART# 35-164 (BOTTOM OF PIC)
IGNITION COIL PIGTAIL
GM 1985/
FITS COIL# 1115315, 1115317
![A diagram of the parts for repair harnesses.](https://delmarwire.com/wp-content/uploads/2023/01/gm-pigtails-p2-35-163.jpg)

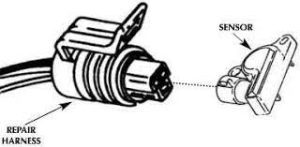

PART# 35-166
GM THROTTLE POSITION SENSOR PIGTAIL
GM VARIOUS MODELS 1990/
SENSOR# 17112679
REPLACES: 12102748, PT-375
![A drawing of an electrical connector with the same wire as it is plugged into.](https://delmarwire.com/wp-content/uploads/2023/01/gm-pigtails-p2-35-166-300x147.jpg)
PART# 35-167
THROTTLE POSITION SENOR PIGTAIL
GM 1983/ WITH FUEL INJECTION
REPLACES: 12116257, PT-430
![A drawing of the parts of an engine.](https://delmarwire.com/wp-content/uploads/2023/01/gm-pigtails-p2-35-167.jpg)
PART# 35-168
GM HALOGEN SOCKET PIGTAIL
FOR 881 & 889
CORNERING/FOG 1993 – 1983
![A blue and black connector is connected to the wires.](https://delmarwire.com/wp-content/uploads/2023/01/gm-pigtails-p2-35-168.jpg)
PART# 35-174
NEUTRAL & PARK SWITCH PIGTAIL
ALSO FITS ALTERNATORS
WHEEL/ VEHICLE SPEED SENSORS
GM 1986/
SWITCH# 1994363, 1994335
REPLACES: 12085537, PT-14
![A close up of the wires on a plug](https://delmarwire.com/wp-content/uploads/2023/01/gm-pigtails-p2-35-174.jpg)
PART# 35-175
EXHAUST OXYGEN SENSOR PIGTAIL
GM 1982/ – AMC, JEEP, ISUZU
REPLACES: 12117385, PT-517
![A drawing of a car that is in the shape of a plane.](https://delmarwire.com/wp-content/uploads/2023/01/gm-pigtails-p2-35-175.jpg)
PART# 35-176 (TWO WIRE)
DISTRIBUTOR MODULE PIGTAIL
GM W/2.8LT (6 CYL) ENGINE 1985/
MODULE# 1987466
PART# 35-177 (FOUR WIRE)
DISTRIBUTOR MODULE PIGTAIL
GM W/2.8LT ENGINE 1985/
GM W/3.8 ENGINE 1988/
ALSO IAC VALVES GM 1987 – 1995
REPLACES: 12126487, PT-757
![A drawing of the wiring for an electrical device.](https://delmarwire.com/wp-content/uploads/2023/01/gm-pigtails-p2-35-176.jpg)

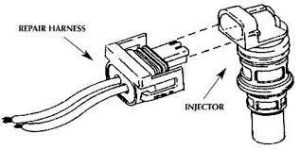

PART# 35-178
THROTTLE BODY INJECTOR PIGTAIL
GM 1987/
REPLACES: 12085496, PT-118
![A picture of an electrical device with the wires connected to it.](https://delmarwire.com/wp-content/uploads/2023/01/gm-pigtails-p2-35-178-300x150.jpg)
PART# 35-179
GM IDLE ARM AIR CONTROL PIGTAIL
GM 1993 – 1985
FITS: 25523222
![A picture of the inside of an electrical connector.](https://delmarwire.com/wp-content/uploads/2023/01/gm-pigtails-p2-35-179.jpg)

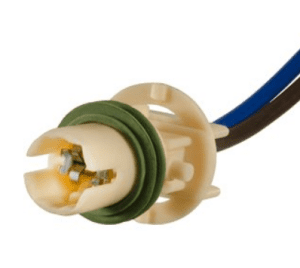

PART# 35-180
GM DOUBLE CONTACT SIDE MARKER LAMPS
GM 1993 – 1988
BULB: 24
REPLACES: 12083007
![A close up of the inside of an electrical connector](https://delmarwire.com/wp-content/uploads/2023/03/35-180-300x268.png)

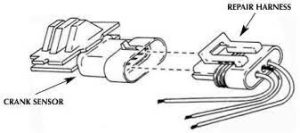

PART# 35-181
CRANKSHAFT SENSOR PIGTAIL
GM VARIOUS MODELS 1986 – 1988
SENSOR# 25526123, 2553548, 12537109
REPLACES: 12085483, PT-105
![A drawing of an electrical device with wires attached.](https://delmarwire.com/wp-content/uploads/2023/01/gm-pigtails-p2-35-181-300x133.jpg)

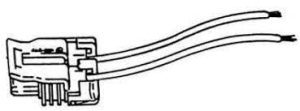

PART# 35-182
WHEEL SPEED SENSOR & HORN PIGTAIL
GM 1988/
SENSOR# 14057282
HORN#10456327, 10456328, 1999160, 1999161
REPLACES: 12116958, PT-419
![A drawing of two wires connected to one another.](https://delmarwire.com/wp-content/uploads/2023/01/gm-pigtails-p2-35-182-300x111.jpg)
PART# 35-183
A/C PRESSURE CYCLING SWITCH
WHEEL SPEED SENSOR, EGR VALVE CONTROL
WINDSHIELD WASHER PUMP PIGTAIL
GM CAR & TRUCK 1987/
REPLACES: 12102747, PT-374
![A drawing of a boat with two propellers.](https://delmarwire.com/wp-content/uploads/2023/01/gm-pigtails-p2-35-183-300x95.jpg)

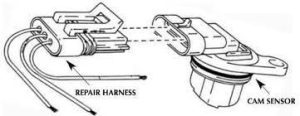

PART# 35-184
CAMSHAFT SENSOR PIGTAIL
GM VARIOS MODELS 1986 – 1992
SENSOR# 25523227, 25530325
REPLACES: 12085538, PT-148
![A drawing of an air harness and the air hose.](https://delmarwire.com/wp-content/uploads/2023/01/gm-pigtails-p2-35-184-300x116.jpg)
PART# 35-185
GM MIXTURE CONTROL SOLENOID
FITS 2 & 4 BARREL ROCHENSTER VARJET
CARBURETORS 1990 – 1982
USED IN KITS: 17067343, 17067344, 17111102
![A green and black cable is connected to the connector.](https://delmarwire.com/wp-content/uploads/2023/01/gm-pigtails-p2-35-185.jpg)
PART# 35-186
GM TEMP SENDING SWITCH PIGTAIL
GM 1969 – 1973
ALSO FIT FLASHERS
CONNECTOR BODY ONLY PART#18-83
![A drawing of a cable with two wires attached to it.](https://delmarwire.com/wp-content/uploads/2023/01/gm-pigtails-p2-35-186.png)

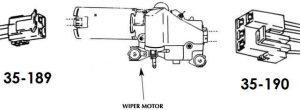

PART# 35-189
WINDSHIELD WIPER MOTOR
GM VEHICLES 1986 – 1994
PART# 35-190
WINDSHIELD WIPER MOTOR
GM VEHICLES 1984 – -1988
REPLACES: 12085530, PT-140
![Exploded view diagram of a wiper motor with component numbers 35-189 and 35-190.](https://delmarwire.com/wp-content/uploads/2023/01/pigtail35-189-300x110.jpg)
PART# 35-192
GM MINI SEAL BEAM PIGTAIL
FOR 4703 HALOGEN SEALED BEAM (LOW)
![A black electrical outlet with wires attached to it.](https://delmarwire.com/wp-content/uploads/2023/01/gm-pigtails-p2-35-192.jpg)

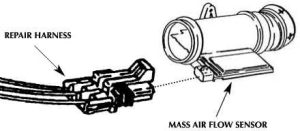

PART# 35-193
DIGITAL MASS AIR FLOW SENSOR PIGTAIL
GM ENGINES W/TUNED PORT INJECTION
SENSOR#25007554, 25007555, 25007770, 25007877,25043940, 25043941
REPLACES: 12085492, PT-114
![Diagram illustrating a mass air flow sensor connected to a repair harness.](https://delmarwire.com/wp-content/uploads/2023/01/PIGTAIL35-193-300x131.jpg)

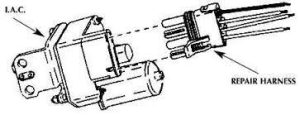

PART# 35-194
IDLE SPEED CONTROL PIGTAIL
GM V6 – V8 W/CARBURETORS 1981 – 1987
IDLE SPEED# 17079129, 17079121
![A drawing of an electric motor and its components.](https://delmarwire.com/wp-content/uploads/2023/01/gm-pigtails-p2-35-194-300x115.jpg)

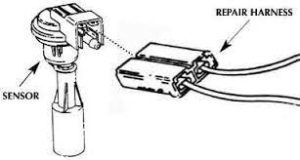

PART# 35-202
WASHER FLUID SENSOR PIGTAIL
GM VEHICLES 1985/
REPLACES: 12101903, PT-175
![A drawing of a person using an electrical device.](https://delmarwire.com/wp-content/uploads/2023/01/gm-pigtails-p2-35-202-300x160.jpg)
PART# 35-205
GM ALTERNATOR PIGTAIL
2 WIRE MALE
MATES WITH PART# 35-79
![A black power cord with a yellow end.](https://delmarwire.com/wp-content/uploads/2023/01/gm-pigtails-p2-35-205.jpg)

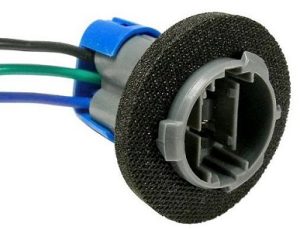

PART# 35-207
GM DOUBLE CONTACT
BACK-UP/PARK/STOP/TAIL/TURN LAMP PIGTAIL
GM 1993 – 1988
BULB: 3057
REPLACES: 12083005
![A close up of the wire on a light switch](https://delmarwire.com/wp-content/uploads/2023/01/gm-pigtails-p2-35-207-300x230.jpg)
PART# 35-208
GM DOULBLE CONTACT
STOP/TAIL/TURN LAMPS PIGTAIL
BULBS: 2057, 3057
REPLACES: 12083006
![A black and blue light bulb with wires attached.](https://delmarwire.com/wp-content/uploads/2023/01/gm-pigtails-p2-35-208.jpg)
PART# 35-209
GM TAILGATE HARNESS PIGTAIL
SUBURBAN & BLAZER GM 1960/
GM STATION WAGON W/POWER TAILGATE
USE OLD LOCK CYLINDER, NO RECODING OF LOCK OR EXTRA KEYS NECESSARY
![A drawing of a car 's steering wheel.](https://delmarwire.com/wp-content/uploads/2023/01/gm-pigtails-p2-35-209-300x90.jpg)
PART# 35-216
POWER TAILGATE WINDOW REGULATOR PIGTAIL
ALL GM STATION WAGONS 1964 – 1972
![A wire harness with two wires connected to it.](https://delmarwire.com/wp-content/uploads/2023/01/gm-pigtails-p2-35-216.jpg)

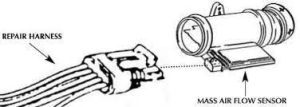

PART# 35-217
MASS AIR FLOW SENSOR PIGTAIL
GM ’85/88 2.8 ENGINES
W/SEQUENTIAL FUEL INJECTION
REPLACES: 12085497, PT-119
![A drawing of a camera with the lens removed.](https://delmarwire.com/wp-content/uploads/2023/01/gm-pigtails-p2-35-217-300x107.jpg)
PART# 35-219
GM DOUBLE CONTACT PIGTAIL
BACK-UP/STOP/TAIL/TURN LAMPS 1993 – 1990
REPLACES: 12083680
BULB: 3057
![A white light bulb with wires attached to it.](https://delmarwire.com/wp-content/uploads/2023/01/gm-pigtails-p2-35-219.jpg)
PART# 35-226 (NLA)
IGNITION COIL PIGTAIL
GM VARIOUS MODELS 1987/
REPLACES: 12101933, PT-205
PART# 35-344
IGNITION DISTRIBUTOR MODULE PIGTAIL
GM VARIOUS MODELS 1987/
REPLACES: 12101880, PT-151
![A drawing of the parts in a vehicle.](https://delmarwire.com/wp-content/uploads/2023/01/gm-pigtails-p2-35-226.jpg)

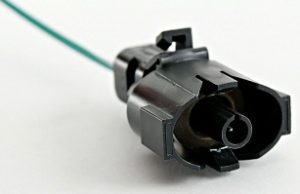

PART# 35-225
GM COOLING FAN TEMP. SWITCH PIGTAIL
![A close up of the wire on an electrical connector](https://delmarwire.com/wp-content/uploads/2023/01/gm-pigtails-p2-35-225-300x194.jpg)
PART# 35-222
GM DOUBLE CONTACT PIGTAIL
BACK-UP/STOP/TAIL/TURN LAMPS 1993 – 1989
REPLACES: 12076946
BULB: 3157
![A light bulb with wires attached to it.](https://delmarwire.com/wp-content/uploads/2023/01/gm-pigtails-p2-35-222.jpg)
PART# 35-220
GM DOUBLE CONTACT PIGTAIL
DRIVING/PARK/STOP/TAIL/TURN LAMPS ’93 – ’90
REPLACES: 12083689
BULB: 3057
![A blue and black light with wires](https://delmarwire.com/wp-content/uploads/2023/01/gm-pigtails-p2-35-220.jpg)
PART# 35-221
GM DOUBLE CONTACT PIGTAIL
BACK-UP/DRIVING/LICENSE LAMPS 1993 – 1988
REPLACES: 12085330
BULB: 3057
![A blue and black electric cord with wires](https://delmarwire.com/wp-content/uploads/2023/01/gm-pigtails-p2-35-221.jpg)
