Ford Pigtails Part 1
Del Mar Wire & Products stocks a full line of Repair Harness Pigtails form Double contact socket for Stop/ Tail/ turn lamps to Ignition Switch pigtails, Alternator 3 way female Repair Pigtails, Headlight Switch Pigtails, A/C Compressor Harness W/Diode Pigtails, Coolant Sensor Pigtails, Fan Speed Switch Pigtails, Throttle Body Fuel Injectors Pigtails, Map Sensor Pigtails, Manifold Air Temp Sensor ( MAT ) Pigtails,Window Lift Motor Pigtails, Ignition Coil Pigtails, Halogen Socket Pigtails, Exhaust Oxygen Sensor Pigtails, Neutral & Park Switch Pigtail also fits Alternator, Wheel / Vehicle Speed Sensors & rear Windshield Wiper Switches. Distributor Module Pigtails, Crankshaft Sensor Pigtail, Wheel Speed Sensor & Horn Pigtails, Digital Mass Air Flow Sensor Pigtails.
We also carry Door Switch Pigtails, Fan Control Switch Pigtails, Master Front Door Switch Pigtails, Oil Pressure Switch Pigtails, Turn Signal Switch Pigtails, Electronic Ride Control Sensor Pigtails, Transmission Converter Clutch Pigtails, Brake Light Switch Pigtails, Garage Door Opener Pigtails, Glow Plug Control Pigtails, Front Axle 4WD Actuator Pigtails, Neutral Safety Switch Pigtails, Crank Shaft Pigtails, ABS Wheel Speed Sensor Pigtails, Battery Accessory Circuit Pigtail it plugs into fuse box marked “BAT” It’s always on for Clocks, Horns, Alarms ECT. We carry Repair Harness Pigtails for most American and Foreign made Vehicles. If you need Assistance in finding what your looking for please call (800) 826-5658

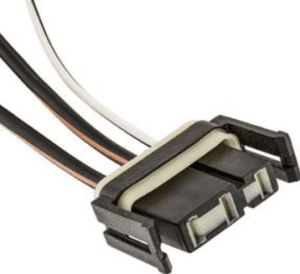

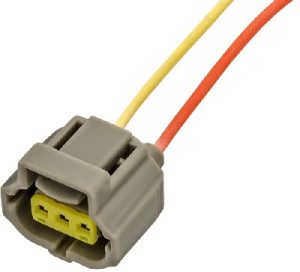

PART# 35-00
FORD ALTERNATOR PIGTAIL

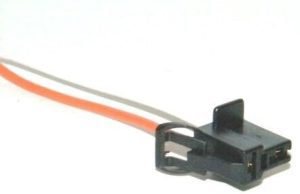

PART# 35-02
100 AMP ALTERNATOR PIGTAIL
FORD 1975 – 1990

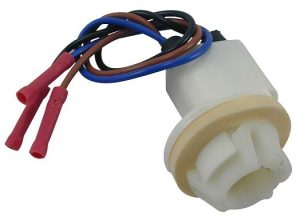

PART# 35-26
FORD DOUBLE CONTACT
PARK/STOP/TAIL/TURN LAMPS 1964-1955
BULB: 1034, 1154, 1157
PART# 35-27
VOLTAGE REGULATOR PIGTAIL
FORD 1975/
REGULATOR# F0PZ-10316-A

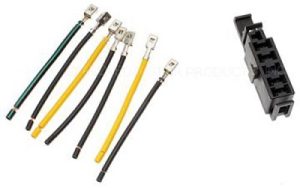

PART# 35-51
IGNITION SWITCH PIGTAIL
FORD 1981/
FITS SWITCH# E6FZ-11572-A, SW1774B:
F29Z-11572-D, SW2474:
F2TZ-11572-E, SW2472
REPLACES: 3U2Z-14S411-BXA, WPT-368

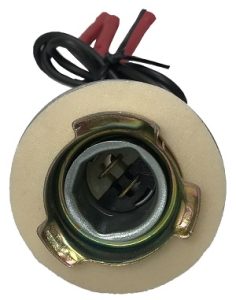

PART# 35-65
FORD DOUBLE CONTACT
PARK/STOP/TAIL LAMPS
REPLACES: D2FZ-13410-A,
D3AZ-B, D5VY-A, D5DZ-A

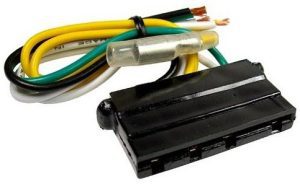

PART# 35-82
FORD VOLTAGE REGULATOR PIGTAIL
1965/
FITS FORD: GR341, GR341A, GR503

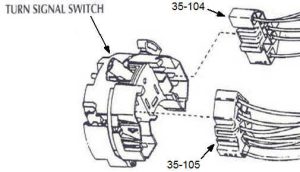

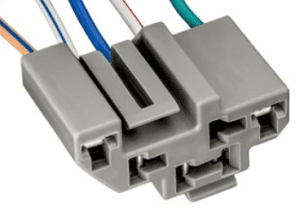

PART# 35-104
TURN SIGNAL SWITCH
FORD 1985 – 1994
SWITCH# E7FZ-13341-A, F33Z-13341-B
5- 18 GA 8″ LEADS
PART# 35-105
TURN SIGNAL SWITCH
FORD 1985 – 1994
SWITCH# E7FZ-13341-A, F33Z-13341-B
2- 18 GA 8″ LEADS

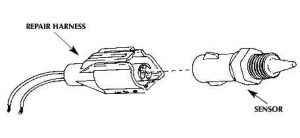

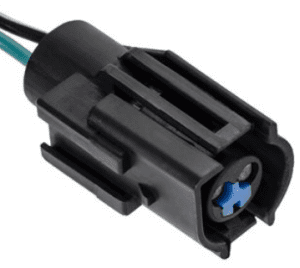

PART# 35-134
COOLANT TEMP SENSOR
FORD VEHICLES 1981/
FITS SENSOR# E1AZ-12A648-A,
F2AZ-12A648-A

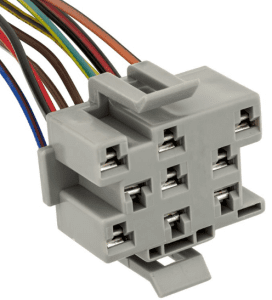

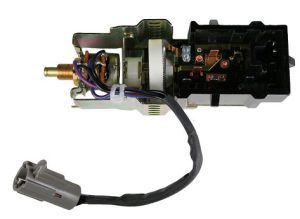

PART# 35-133
DASH MOUNTED HEADLAMP SWITCH
FORD CARS & TRUCKS 1984/
FITS MOST SWITCHES WITH FORD BASE# 11654
REPLACES: 1U2Z-14S411-AAA, WPT-165

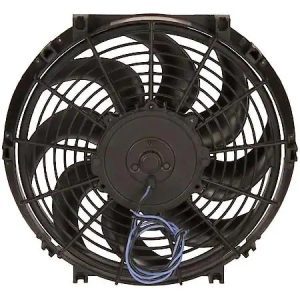

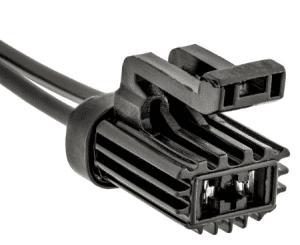

PART# 35-132
RADIATOR COOLING FAN MOTOR PIGTAIL
FORD 4 CYLINDER ENGINES 1979/
REPLACES: 1U2Z-14S411-CA, WPT-104
HEATER BLOWER MOTOR
FORD TRUCKS, PICK-UPS, VANS 1982 – 1986

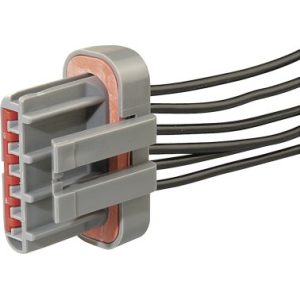

PART# 35-130
ELECTRONIC MODULE E.E.C IV
IGNITION PIGTAIL
FORD 1983/
REPLACES: E5ZZ-12A209A, 3U2Z-14S411-KGA,
WPT-297
PART# 35-131 (NLA)
ELECTRONIC IGNITION MODULE PIGTAIL
FORD AERO STAR & RANGER 1988/

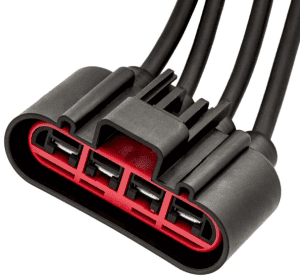

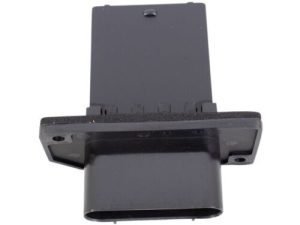

PART# 35-129
BLOWER MOTOR RESISTOR
FORD EXPEDITION, EXPLORER, AVIATOR,
MOUNTAINEER 2002- 2010
REPLACES: 3U2Z-14S411-ZDA,WPT-726
RESISTOR# 4L2Z-19A706-AA

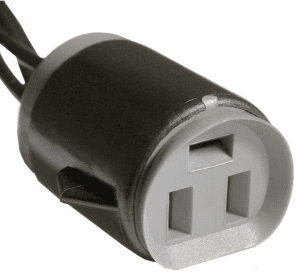

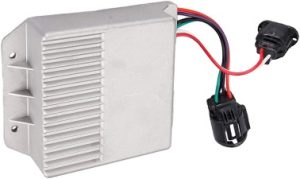

PART# 35-128
ELECTRONIC IGNITION MODULE
FORD CARS & LIGHT TRUCKS 1975 – 1985
TRUCKS 700 SERIES & LARGER 1975 – 1991
F2PZ-12A199-AA, DY683
(MAIN WIRING HARNESS)

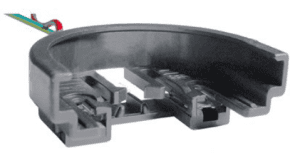

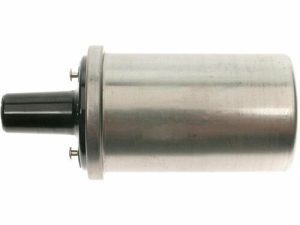

PART# 35-127
COIL TO IGNITION
FORD PRODUCTS 1977/
(EXCEPT CALIFORNIA MODELS)

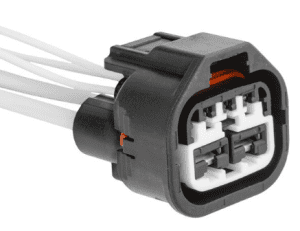

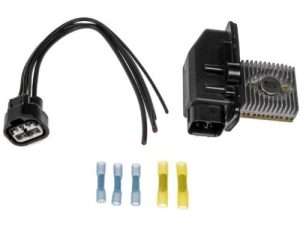

PART# 35-120
BOWER MOTOR RESISTOR
FORD, LINCOLN & MERCURY 1991- 2011
REPLACES: 1U2Z-14S411-BHA, WPT-153

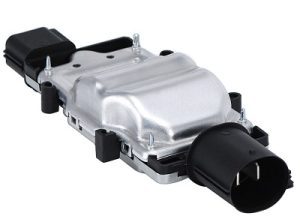

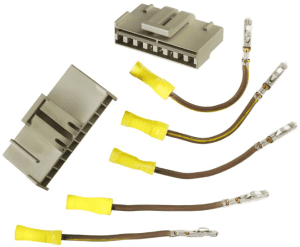

PART# 35-116
ENGINE COOLING FAN MODULE PIGTAIL
FORD 4 & 6 CYLINDERS 1983/
REPLACES: E4FZ-8C290-A

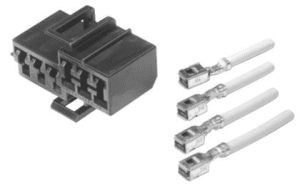

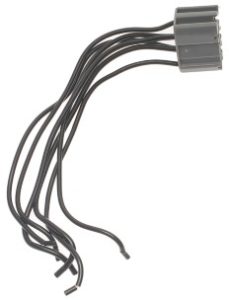

PART# 35-114
IGNITION SWITCH PIGTAIL
FORD TAURUS/SABLE 1986/
SWITCH#E7DZ-11572-A, SW1991
REPLACES: E6DZ-14A411-A

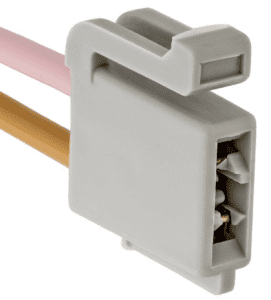

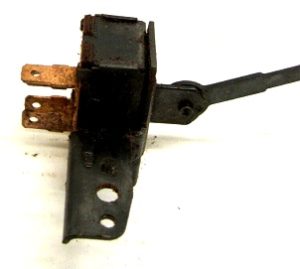

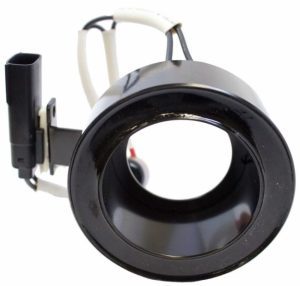

PART# 35-111
FORD A/C CLUTCH FIELD COIL PIGTAIL

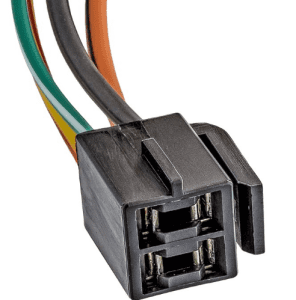

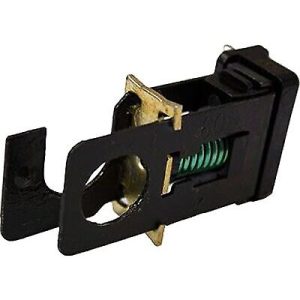

PART# 35-108
FAN SPEED SWITCH
FORD TAURUS/SABLE 1986 – 1993
T-BIRD/COUGAR 1989 – 1993
E SERIES 1992 MUSTANG
SWITCH#E6DZ-19986, E9SZ-A, F2DZ-A, F2UZ-A,B
REPLACES: 1U2Z-14S411-BA, WPT103

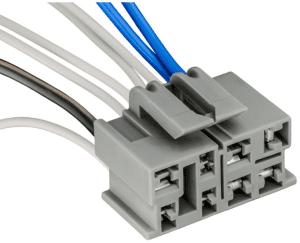

PART# 35-107
HEAD LAMP SWITCH
MERCURY SABLE 1986 – 1989
SWITCH# E64Y-11654-A
(MOTOR CRAFT- SW1975)

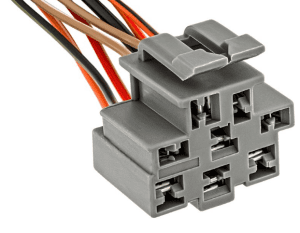

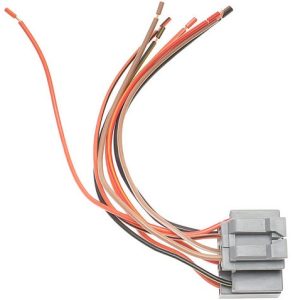

PART# 35-106
HEAD LAMP SWITCH PIGTAIL
FORD TAURUS 1986/ SABLE 1990 – 1995
SWITCH# E6DZ-11654-A, F2DZ-A
(MOTOR CRAFT- SW1976)

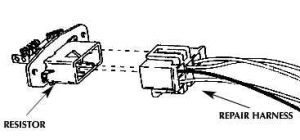

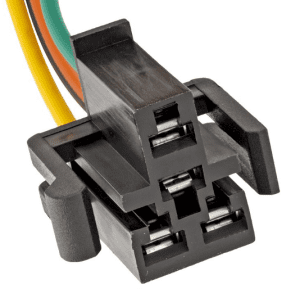

PART# 35-136
A/C BLOWER MOTOR RESISTOR PIGTAIL
FORD TRUCKS 1981/
RESISTOR#E7TZ19A706-A, E3AZ19A706-A
REPLACES: 1U2Z-14S411-NA, WPT-114

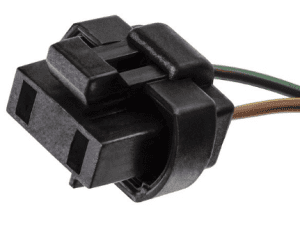

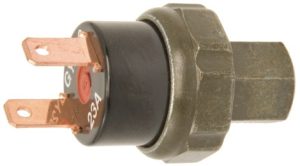

PART# 35-138
AIR CONDITIONING CYCLING SWITCH
ALL FORD 1983/
SWITCH# E35Y-19E561-A, YH513

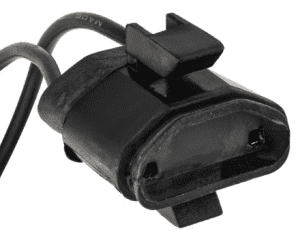

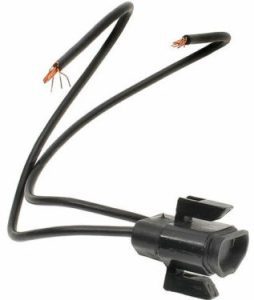

PART# 35-141
WINDSHIELD WASHER PUMP ASSY. PIGTAIL
FORD PRODUCTS 1968/
PUMP#E3AZ-17664-A, E0AZ-17664-A
PART# 35-300 (NLA)
WINDSHIELD WASHER PUMP
LOW LEVEL SENSOR PIGTAIL
FORD AEROSTAR 1986/

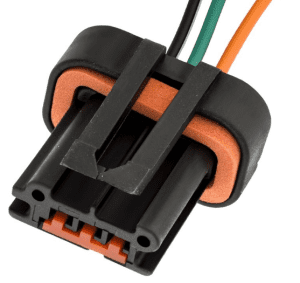

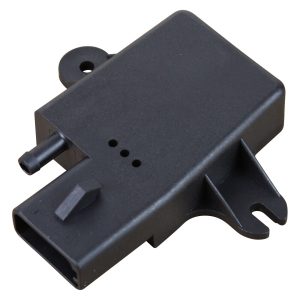

PART# 35-144
MANIFOLD ABSOLUTE PRESSURE (M.A.P.)
SENSOR PIGTAIL
FORD VEHICLES 1985/
REPLACES: 3U2Z-14S411-FUA, WPT-263

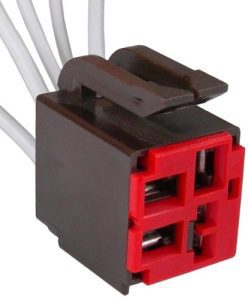

PART# 35-155
EEC RELAY PIGTAIL
FORD VEHICLES 1983/
RELAY# E3AZ-12A646-A
PART# 35-156
MASS AIR FLOW SENSOR PIGTAIL
FORD VEHICLES 1989 – 1992
REPLACES: 3U2Z-14S411-ACA, WPT-207
ADDITIONAL APPLICATIONS
FITS COIL: F0TZ-12029-A, F1SZ-12029-A

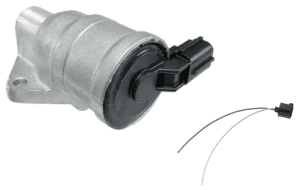

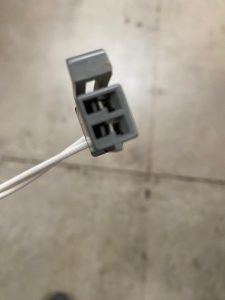

PART# 35-157
IDLE AIR BY-PASS VALVES & WASHER PIGTAIL
FORD VEHICLES
LEVEL SENSOR# F58Z-17618-B
W/BASE# 9F715
