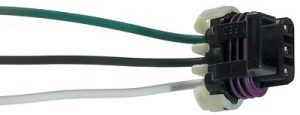

PART# 35-374
GM CRANK POSITION SENSOR PIGTAIL
SENSOR# 10154687
ELECTRIC BRAKE MODULE, ENGINE COOLING FAN MOTOR
ENGINE COOLANT LEVEL SWITCH & VARIOUS SENSORS
GM CAR & TRUCK 1990/
REPLACES# 12117025, PT-420

PART# 35-366
INLINE CONNECTIONS PIGTAIL
INTERIOR LIGHTING, REAR VIEW MIRROR, SIDE MARKER
VAN MIRROR, RADIO SPEAKER, LUMBAR SWITCH ECT.
GM CARS & TRUCKS 1986/
REPLACES: 12085535, PT-146

PART# 35-365
GM GARAGE DOOR OPENER PIGTAIL
GM 1980/
DOOR OPENER# 12344978

PART# 35-364
MASS AIR FLOW SENSOR PIGTAIL
CAM & CRANK SENSOR PIGTAIL
GM CARS & TRUCKS 1989/
SENSOR# 245029674,24503984
REPLACES: 12085495, PT-117

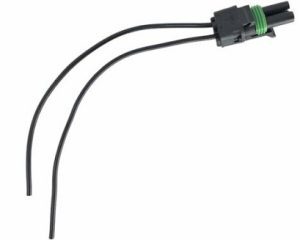

PART# 35-363
BACK-UP LAMP SWITCH PIGTAIL
GM CARS & TRUCKS 1971/
SWITCH# 23049569, D2220A
REPLACES: 12085485, PT-107

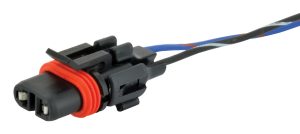

PART# 35-362
HALOGEN BULB PIGTAIL
GM PARKING & SIGNAL LIGHTS 1988/ & FORD
REPLACES: 12102664, PT-331
BULBS: 880, 884, 885, 890, 892, 893, 899

PART# 35-361
BRAKE LIGHT SWITCH
GM 1985/
SWITCH# 10194425, 25529862
REPLACES: 12117354, PT-487
PART# 35-367
BRAKE LIGHT SWITCH
GM 1985/
SWITCH# 10194425

PART# 35-360
HEADLAMP SWITCH, IGNITION SWITCH PIGTAIL
GM TRUCK 1990 – 1996
SWITCH#15693540, 10471139, 1070881, 15693547, 15693548
REPLACES: 12101927, PT-199

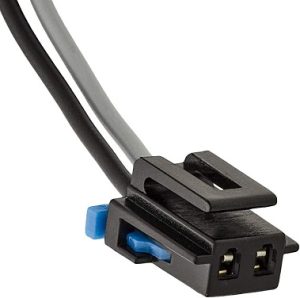

PART# 35-359
FUEL PUMP PIGTAIL
GM 1988
REPLACES: 25117765, FPS1

PART# 35-349
TRANSMISSION CONVERTER CLUTCH PIGTAIL
GM 1984/
REPLACES: 12085533

PART# 35-342
SEALED BEAM PIGTAIL
GM FIREBIRD, BLAZER 1993/
LAMP#H4666, H6545

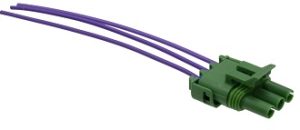

PART# 35-336
ELECTRONIC RIDE CONTROL SENSOR PIGTAIL
GM 1993/
REPLACES: 12126444

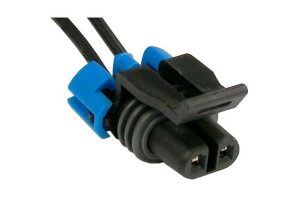

PART# 35-332
EGR VALVE CONTROL&
WINDSHIELD WIPER PUMP PIGTAIL
GM 1987/
REPLACES: 12102747, PT-374

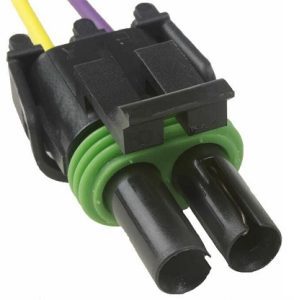

PART# 35-330
GM VEHICLE SPEED SENSOR PIGTAIL
GM VARIOUS MODELS 1989/
SENSOR#10456022, 10456088, 10456089,
10456091, 10456092
REPLACES: 12085498, PT-120

PART# 35-319
GM AMBIENT/OUTSIDE AIR TEMP SENSOR/FAN CONTROLLER
OUTPUTS/VACUUM PUMP/LOW BREAK VACUUM SENSOR
VEHICLE SPEED SENSOR

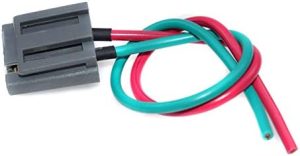

PART# 35-318
GM POWER MODULE CONNECTOR PIGTAIL

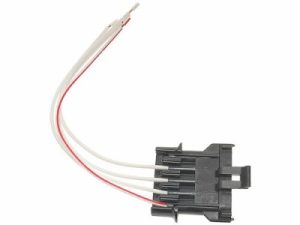

PART# 35-379
GLOW PLUG CONTROL PIGTAIL
GM TRUCKS 1985/
CONTROLLER:12088520
REPLACES: 12101871, PT-262

PART# 35-384
NEUTRAL/PARK SWITCH PIGTAIL
SWITCH# 1994363, 1994335
ALTERNATORS, WHEEL/VEHICLE SPEED SENSOR
REAR WINDSHILD WIPER SEITCHES
GM 1986/
REPLACES: 12085537, 15306009
15324824, PT-147, PT-1136

PART# 35-393
FRONT AXLE 4WD ACTUATOR PIGTAIL
GM TRUCKS 1997/
ACTUATOR# 26060073
REPLACES: 12117277, PT-450

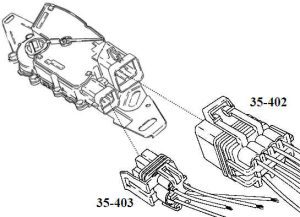

PART# 35-402
NEUTRAL SAFETY SWITCH PIGTAIL
GM CAR & TRUCK 1995/
SWITCH#12450016
REPLACES: 15305887, PT-1031
PART# 35-403
NEUTRAL SAFETY SWITCH PIGTAIL
GM CAR & TRUCK 1995/
SWITCH#12450016
REPLACES: 15305925, PT-1184

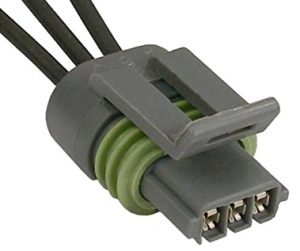

PART# 35-404
CRANK SENSOR PIGTAIL
GM 1988/
SENSOR# 12537111, 24500988, 24501417, 25533327
REPLACES: 15305942, PT-1174

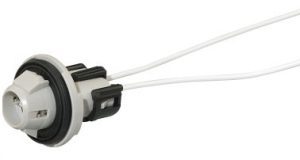

PART# 35-405
BACK-UP/LICENSE PLATE/SIDE MARKER/PARK/TURN
GM CARS & TRUCKS 1992/
REPLACES: 12141388, LS44

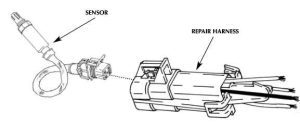

PART# 35-419
GM OXYGEN SENSOR PIGTAIL
GM 1995/
SENSOR# 25162980, 25312195, 25161130, 25161131,
25162981, 25164727, 25164983, 25167114, 25170120
REPLACES: 15305801, PT-919

PART# 35-423
GM O2 SENSOR
GM CARS & LT. DUTY TRUCKS 1998- 2011
REPLACES: 15305960, PT-1069

PART# 35-432
GM FUEL- INJECTOR, KNOCK, CAM, CRANK,
COOLANT TEMP SENSORS
GM 2004-2014
REPLACES: 88988963, PT-2183, CU2Z-14S411-ARA
WPT-1302

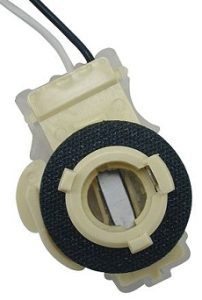

PART# 36-01
GM SINGLE CONTACT PIGTAIL
BACK-UP/CORNERING LAMPS 1993 – 1977
90 DEGREES MOUNTING
REPLACES: 12003758
BULB: 1156

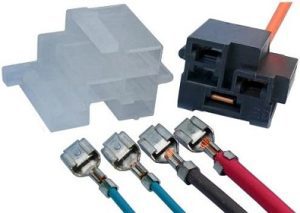

PART# 36-06
GM IGNITION SWITCH PIGTAIL
GM 1969/
SWITCH# 1990105, 1990109, 1990110,
1990115, 1990116, 7909811

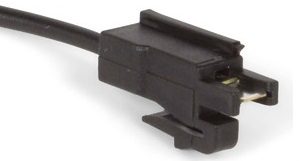

PART# 36-24 (CLEAR)
GM BATTERY ACCESSORY CIRCUIT PIGTAIL
PLUGS IN FUSE BOX MARKED “IGN”
ON WHEN IGNITION IS ON
PART# 36-27 (CLEAR)
GM BATTERY ACCESSORY CIRCUIT PIGTAIL
USE IF “IGN” IS OCCUPIED
REMOVE EXISTING CONNECTOR 36-24 & PLUG
36-27 PIGGYBACK INTO 36-24 PLUG BOTH BACK
INTO “IGN” CAVITY

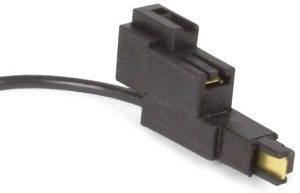

PART# 36-23 (BLACK)
GM BATTERY ACCESSORY CIRCUIT PIGTAIL
PLUGS IN FUSE BOX MARKED “BAT”
ALWAYS ON – USE FOR CLOCKS,HORNS,ALARMS ECT.
PART# 36-26 (BLACK)
GM BATTERY ACCESSORY CIRCUIT PIGTAIL
USE IF “BAT” IS OCCUPIED
REMOVE EXISTING CONNECTOR 36-23 & PLUG
36-26 PIGGYBACK INTO 36-23 PLUG BOTH BACK
INTO “BAT” CAVITY

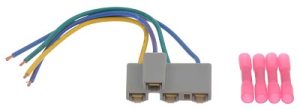

PART# 36-30
GM HEATER RESISTOR PIGTAIL
GM 1977 – 1992
RESISTOR#526897, 10039426
REPLACES: 12102675, PT-342

PART# 36-40
USED TO EXTEND PIGTAIL 35-79 IF THE REPLACEMENT
ALTERNATOR HAS A DIFFERENT CLOCK POSITION
FOR ALTERNATOR WITH DELCAT OR EXTERNAL
VOLTAGE REGULATOR 1974 – 1962
REPLACES: 2977373, FITS DELCO 7701

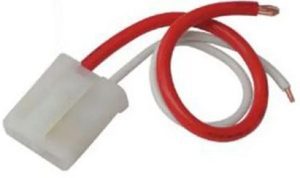

PART# 36-41
GM PIGTAIL EXTENDER
FOR ALTERNATOR WITH INTERNAL VOLTAGE
REGULATOR 1971/
REPLACES: 6294493, FITS DELCO 7731

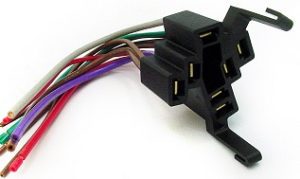

PART# 36-42
GM IGNITION PIGTAIL
“C”, “G”, “P” TRUCKS 1967 – 1993

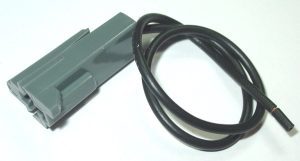

PART# 36-69
GM ELECTRONIC CHOKE PIGTAIL
GM CARS 1977 – 1986

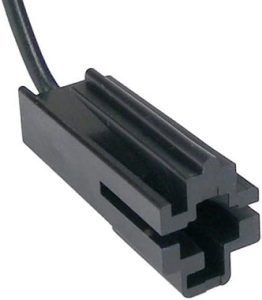

PART# 36-70
GM ELECTRONIC CHOKE PIGTAIL
GM CARS W/O FUEL INJECTION 1987/

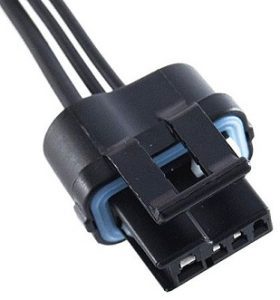

PART# 36-71
GM VOLTAGE REGULATOR MODULE PIGTAIL
ALL MODELS W/INTERNAL REGULATORS
GM 1986/
REGULATORS: 1116411, 1116408
