GM Pigtails Part 3

REPAIR HARNESS & PIGTAILS

PART# 35-289
DIRECT IGNITION, DOOR LOCK ACTUATOR
GM 1987/
ACTUATOR: 22144362, 22144363
REPLACES: 12101855, PT-247

PART# 35-283
GM INSTRUMENT PANEL & GENERAL USE PIGTAIL
GM VARIOUS MODELS 1990/
REPLACES: 12117353, PT-486

A gray plastic device with a black handle.

PART# 35-282
OIL PRESSURE SWITCH PIGTAIL
GM – L, Y, F BODIES 1987 – 1994
SWITCH# 10240133
REPLACES: 12085500, 15306358, PT-100

PART# 35-281
OIL PRESSURE SWITCH PIGTAIL
GM – E, H, W, BODIES 1987 – 1994
SWITCH# 3532954, 10206847, 25605389, 25627057
REPLACES: 12085539, PT-149

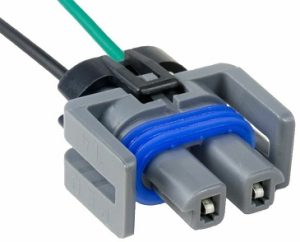

A green and black wire is connected to the connector.

PART# 35-280
GM ALTERNATOR RUBBER BOOT

PART# 35-279
GM BRAKE WARNING SENSOR PIGTAIL
1978/

A picture of the wire for the water heater.

PART# 35-277
GM SINGLE CONTACT
BACK-UP/CORNER/SIDE MARKER LAMPS 1993 – 1984
REPLACES: 12027122
BULB: 1156

A black and green cable is connected to the connector.

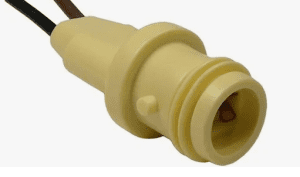

PART# 35-276
GM DOUBLE CONTACT
LICENSE/SIDE MARKER LAMPS 1993 – 1995
BULB: 194

A close up of the side of an electrical plug.

PART# 35-275
GM DOUBLE CONTACT
STOP/TAIL LAMPS 1993 – 1987
REPLACES: 1203055
BULBS: 1157, 1157A

A black light bulb with wires attached to it.

PART# 35-273
GM DOUBLE CONTACT
STOP/TAIL/TURN LAMPS 1993 – 1980
REPLACES:12003757, DELCO LS-6
BULBS: 1034, 1154, 1157

PART# 35-272
GM SINGLE CONTACT
BACK-UP/CORNERING/TURN LAMPS 1992 – 1972
REPLACES: 8904257, 12003878
BULBS: 1073, 1129, 1133, 1141, 1156

PART# 35-269
GM MASTER FRONT DOOR SWITCH PIGTAIL
REPLACES: 12101916

PART# 35-267
GM WINDOW SWITCH DRIVER DOOR
REPLACES: 12101929

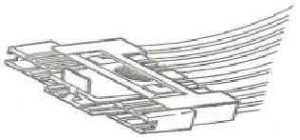

A drawing of a bunch of wires that are connected to each other.

PART# 35-266
GM FRONT DOOR SWITCH PIGTAIL
4 DOOR MASTER LEFT
REPLACES: 12101913

A drawing of a guitar pickup with wires.

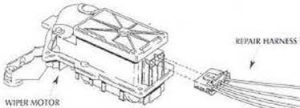

PART# 35-265
GM WIPER MOTOR/ WINDSHIELD WIPER SWITCH
WINDOW SWITCH PIGTAIL
GM CARS & TRUCKS 1984 – 1995
WIPER MOTOR#22062912
REPLACES: 12085487, PT-109
