Chrysler Pigtails

REPAIR HARNESS & PIGTAILS

Del Mar Wire & Products stocks a full line of Repair Harness Pigtails form Double contact socket for Stop/ Tail/ turn lamps to Ignition Switch pigtails, Alternator 3 way female Repair Pigtails, Headlight Switch Pigtails, A/C Compressor Harness W/Diode Pigtails, Coolant Sensor Pigtails, Fan Speed Switch Pigtails, Throttle Body Fuel Injectors Pigtails, Map Sensor Pigtails, Manifold Air Temp Sensor ( MAT ) Pigtails,Window Lift Motor Pigtails, Ignition Coil Pigtails, Halogen Socket Pigtails, Exhaust Oxygen Sensor Pigtails, Neutral & Park Switch Pigtail also fits Alternator, Wheel / Vehicle Speed Sensors & rear Windshield Wiper Switches. Distributor Module Pigtails, Crankshaft Sensor Pigtail, Wheel Speed Sensor & Horn Pigtails, Digital Mass Air Flow Sensor Pigtails.

We also carry Door Switch Pigtails, Fan Control Switch Pigtails, Master Front Door Switch Pigtails, Oil Pressure Switch Pigtails, Turn Signal Switch Pigtails, Electronic Ride Control Sensor Pigtails, Transmission Converter Clutch Pigtails, Brake Light Switch Pigtails, Garage Door Opener Pigtails, Glow Plug Control Pigtails, Front Axle 4WD Actuator Pigtails, Neutral Safety Switch Pigtails, Crank Shaft Pigtails, ABS Wheel Speed Sensor Pigtails, Battery Accessory Circuit Pigtail it plugs into fuse box marked “BAT” It’s always on for Clocks, Horns, Alarms ECT. We carry Repair Harness Pigtails for most American and Foreign made Vehicles. If you need Assistance in finding what your looking for please call (800) 826-5658

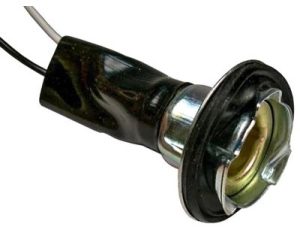

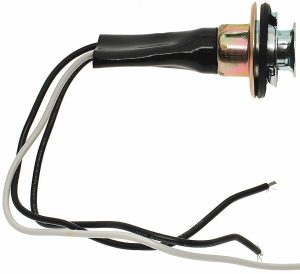

PART# 35-89
CHRYSLER SINGLE CONTACT PIGTAIL
BACK-UP/CORNERING/SIDE MARKER,
LAMPS 1993 – 1997
REPLACES: 3764865, 3843245, 4124721, 4331051
BULB: 87, 93, 1156

Black immersion heating element with electrical cord on a white background.

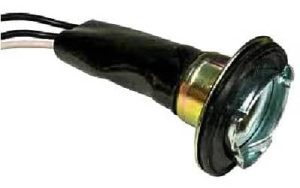

PART# 35-90
CHRYSLER DOUBLE SOCKET PIGTAIL
PARK/STOP/TAIL/TURN LAMPS 1993 – 1971
REPLACES: 3764863
BULB: 63, 67, 81, 87, 89, 93, 209,
1003, 1073, 1129, 1133, 1141

Black flashlight with a clear lens and a wired switch.

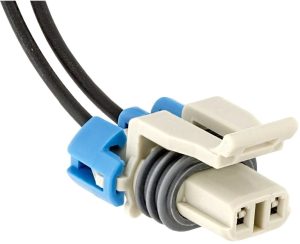

PART# 35-176
HORN PIGTAIL
CHRYSLER 1991 – 1995
HORN# 5269098, 5269099, 5269103

A close up of the wire harness connector

PART# 35-177
IDLE AIR CONTROL VALVE PIGTAIL
CHRYSLER 1986 – 1995
CHRYSLER VALVES# 4288298, 4300264,
4419639, 44358355, 4861084

A purple and blue connector is connected to wires.

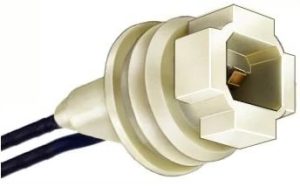

PART# 35-188
CHRYSLER SOCKET PIGTAIL
STOP, TAIL, TURN, PARKING, MARKER LAMPS
300M, ‘LH’, NEON, MINI-VAN, DAKOTA, DURANGO
VANS, CHEROKEE, TJ, WRANGLER 1990-2004
REPLACES: 4399900, 68063066AA, 88860571, LS171
BULB: 3157

A black and white picture of an electrical connector.

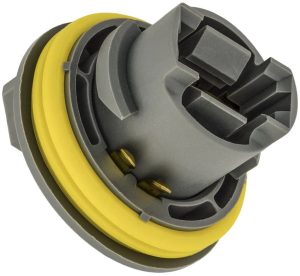

PART# 35-191
CHRYSLER SOCKET PIGTAIL – TAIL LAMP
CHRYSLER, DODGE MINIVAN, 1996-2000
DODGE DURANGO 1998-2003
JEEP GRAND CHEROKEE 1996-2004
LIBERTY 2002-2007
REPLACES: 4676589, 88860570, LS170
BULB: 3157

Plastic electrical connector with yellow sealing gasket.

PART# 35-197
CHRYSLER SC SOCKET PIGTAIL
BACK-UP 1996 – 1990
REPLACES: 4636361
BULB: 921

A picture of an ignition switch on the side of a car.

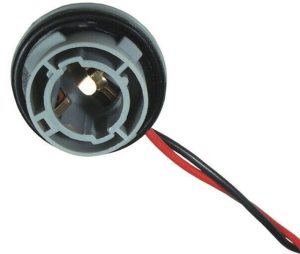

PART# 35-198
CHRYSLER SC SOCKET PIGTAIL
BACK-UP 1992 – 1987
REPLACES: 4636363
BULB: 1156

A close up of the temperature sensor on a white table

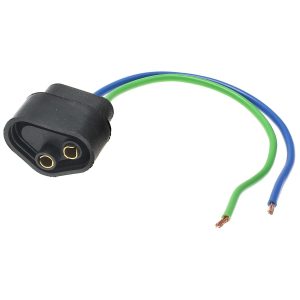

PART# 35-199
CHRYSLER DOUBLE CONTACT PIGTAIL
SIDE MARKER LAMPS 1988 – 1972
PVC MOLDED HOUSING
REPLACES: 3513686, 4055028
BULBS: 194, 194A

A picture of the front end of an electrical connector.

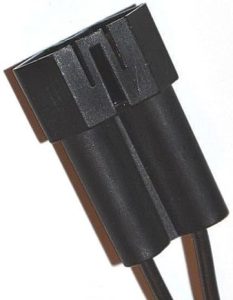

PART# 35-235
CHRYSLER RV2/C171 SANDEN
A/C COMPRESSOR CLUTCH COIL PIGTAIL

Close-up of an 8-pin pci express power connector for a graphics card.

PART# 35-236
CHRYSLER C171/A590/6C17/10PA
A/C COMPRESSOR CLUTCH COIL

A close up of the end of an electrical connector

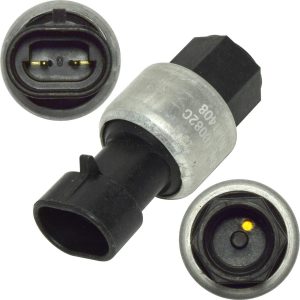

PART# 35-243
CHRYSLER ACCUMULATOR
SUCTION LINE MOUNTED PRES. CYCLING SWITCH,
LIQUID LINE MOUNTED LOW/HIGH PRES. SWITCH
BLACK RUBBER HOUSING

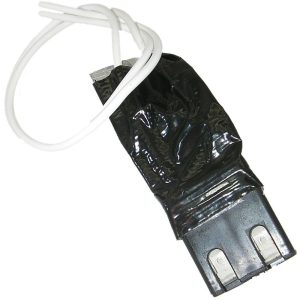

PART# 35-247
CHRYSLER/SANDEN A/C COMPRESSOR
CLUTCH COIL PIGTAIL W/ DIODE

A wire with an electrical plug attached to it.

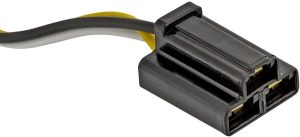

PART# 35-256
CHRYSLER BLOWER RELAY PIGTAIL

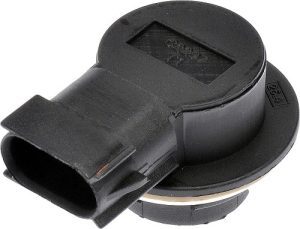

PART# 35-322
CHRYSLER DC SOCKET 1995 – 1984
FRONT,REAR TURN SIGNAL,PARK,REAR COMBO
REPLACES: 4636359
BILB: 3157, 3157NA

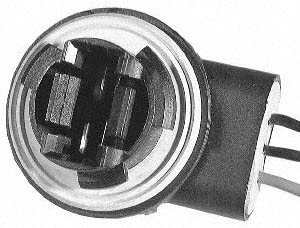

PART# 35-323
CHRYSLER DC SOCKET 1993 – 1988
FRONT,PARK,TURN,SIGNAL,
REAR COMBO,BACK-UP
REPLACES: 4636360
BULB: 3157, 3157NA

Black and white image of a diode component with leads.

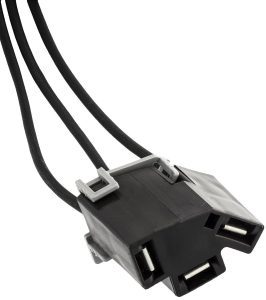

PART# 35-342
SEALED BEAM PIGTAIL
CHRYSLER,DAYTONA,LASER 1989 – 1991
BULB# H4666, H6545

Computer power supply cable with a 24-pin atx connector.

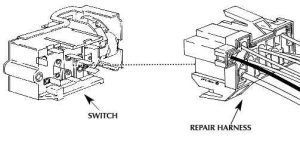

PART# 35-354
CHRYSLER HEAD LAMP SWITCH PIGTAIL
DAKOTA,”B” VAN,FULL SIZE PICK-UP 1990/
SWITCH# 56007043
REPLACES: 4728204

A technical diagram showing the connection between a switch and a repair harness.

PART# 35-372
OIL PRESSURE SWITCH & VEHICLE SPEED SENSOR
CHRYSLER 1985 – 1992
SWITCH# 4707015, 5233397

A black and yellow wire is connected to an electrical connector.

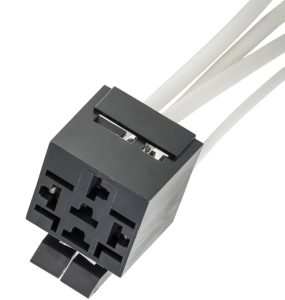

PART# 35-373
STARTER RELAY PIGTAIL
CHRYSLER 1988 – 1991
RELAY# 5227300

A black wire with six wires attached to it.

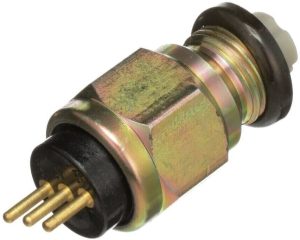

PART# 35-391
CHRYSLER NEUTRAL SAFETY SWITCH PIGTAIL
CHRYSLER JEEP,AMC,IHC 1967 – 1994
SWITCH# 2932820, 3747361, 4057750
REPLACES: 2926502

A black light bulb with wires around it.

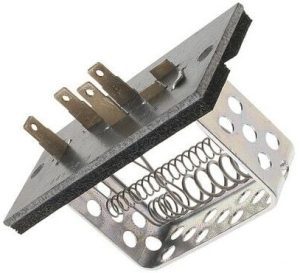

PART# 35-392
BLOWER MOTOR RESISTOR PIGTAIL
CHRYSLER,NEON,MINI VAN 1990 – 1995
RESISTOR# 4462978

A white electrical connector with wires around it.

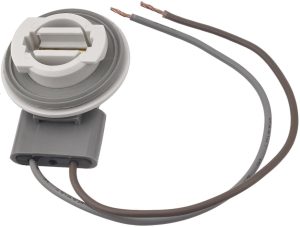

PART# 35-397
CHRYSLER DC SOCKET PIGTAIL
FRONT PARK,TURN LAMPS 1996 – 1985
REPLACES: 4636358
BULB: 2057NA

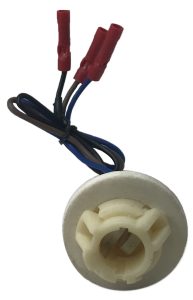

PART# 35-406
STOP,TURN,TAIL LAMP PIGTAIL
CHRYSLER PRODUCTS, DODGE TRUCK 1989-1992
BULB: 1157

A black light bulb with green lamp holder.

PART# 35-427

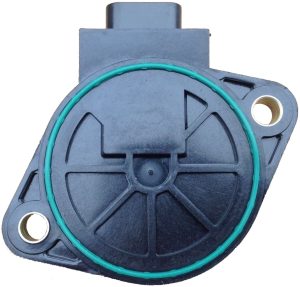

CAM 7 CRANK SHAFT SENSOR
IGNITION COIL PIGTAIL
CHRYSLER,EAGLE,MITSUBISHI 1995/
SENSOR# 4671011, 4882526, 4882851AA,
5269559, MO5269559, 5269705, 4778796
5235378, 4882850AA, 4609083, 5269703
COIL# 4557468, 5269670, 4671025,
MO4557468, MO4777667
REPLACES: 4897087AA
